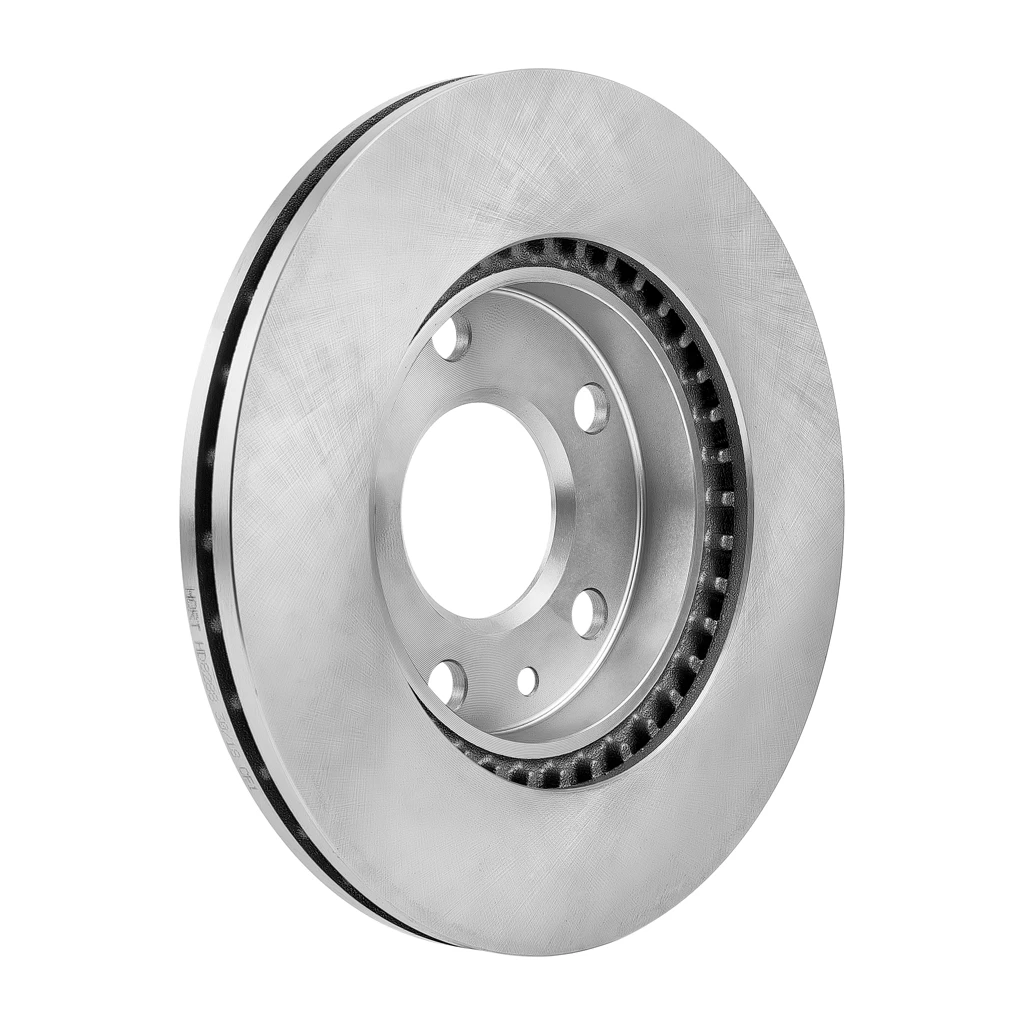

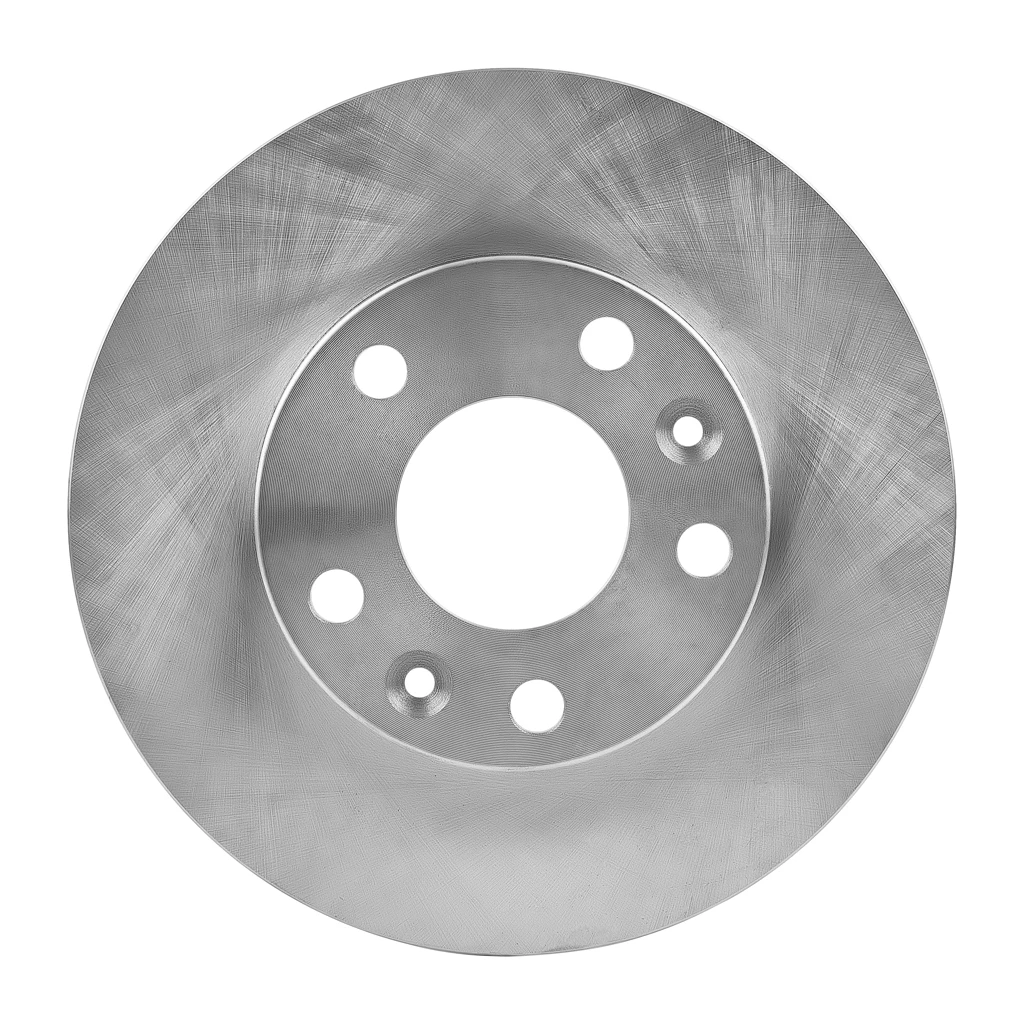

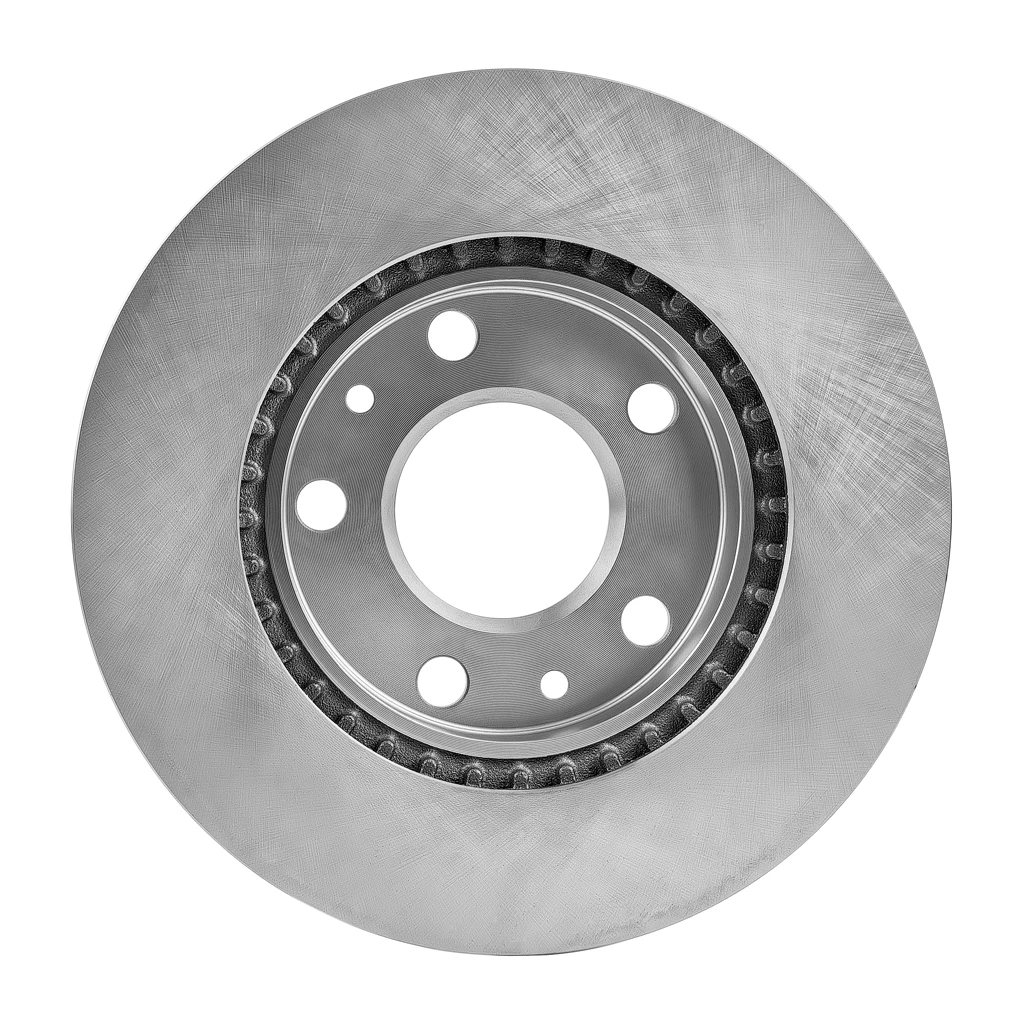

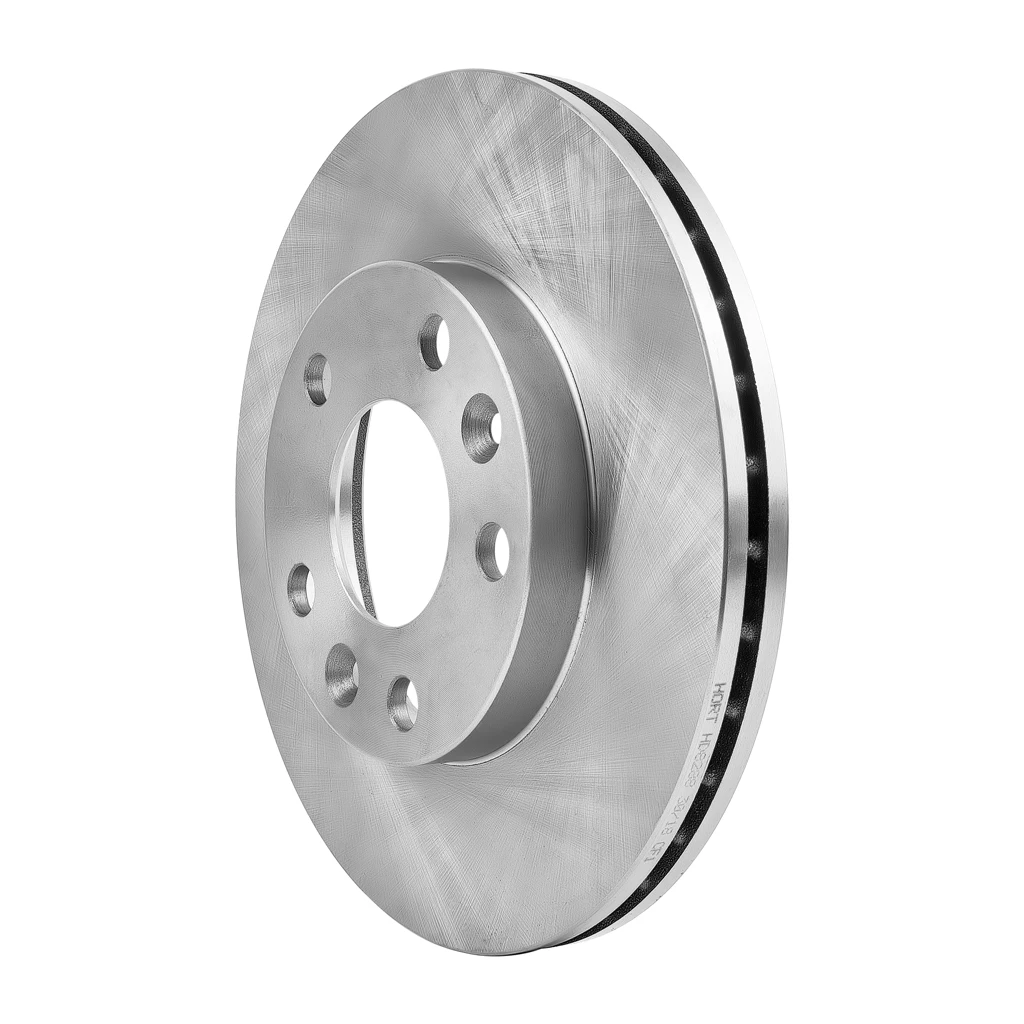

BRAKE DISCS TM HORT - this is one of the main elements of the brake system. They are designed to ensure safe vehicle speed reduction. They provide a friction surface for brake pads: when braking pads are pressed against the disc and due to the friction force to stop its rotation. BRAKE DISCS TM "HORT" for cars and vans are presented in several categories:
- Standard brake discs HORT for the front and rear axle. These discs with the largest braking area have maximum structural integrity which in most cases makes it possible to avoid cracking during emergency braking: ventilated - made of two plates, between which there are cooling cavities; unventilated - consist of a solid plate.
- HORT brake discs of the TUNING series (with notches and perforations) ensure reliable cooling of the disc during overloading due to perforation, preventing discs and pads from overheating, and increasing their service life. Notches on the discs provide the release of dust and gas that occurs between the disc and the brake pad as a result of friction during reusable emergency braking. Also, they serve to divert water. All this provides the block with a large area of clutch disc and a high coefficient of friction, which allows you to confidently stop the car. These wheels are suitable for cars that are experiencing overload or with a large mass, which is very important for commercial vehicles. The disc that is better cooled (perforated) is combined with the one that maintains a clean contact surface with the brake pad (notched disc). The HORT brake discs of the TUNING series provide additional protection, safety and durability.
| Brand | Cross Code | Short Code |
|---|---|---|
| BREMBO | 09.B463.10 | 09B46310 |
| BREMBO | 09B46310 | 09B46310 |
| BENDIX | 562658BC | 562658BC |
| JURID | 562658JC | 562658JC |
| FEBI BILSTEIN | 40075 | 40075 |
| RENAULT | 40 20 663 00R | 402066300R |
| RENAULT | 402066300R | 402066300R |
| DACIA | 40 20 663 00R | 402066300R |
| DACIA | 4020 663 00R | 402066300R |
| DACIA | 402066300R | 402066300R |
| NISSAN | 40206-6300R | 402066300R |
| RENAULT | 40 20 663 00R SK | 402066300RSK |
| DACIA | 40 20 663 00R SK | 402066300RSK |
| ZIMMERMANN | 470243920 | 470243920 |
| ZIMMERMANN | 470243952 | 470243952 |
| ROTINGER | 2133 | 2133 |
| ROTINGER | 21333 | 21333 |
| ROTINGER | 21333GL | 21333GL |
| METELLI | 231288C | 231288C |
| VALEO | 197500 | 197500 |
| DELPHI | BG4455 | BG4455 |
| FERODO | DDF2078C | DDF2078C |
| TEXTAR | 92272603 | 92272603 |
| GIRLING | 6062001 | 6062001 |
| ROAD HOUSE | 6147810 | 6147810 |
| BOSCH | 986479779 | 986479779 |
| HORT | HD8288 | HD8288 |
| LPR | R1060V | R1060V |
| STARLINE | PB 21333 | PB21333 |
| FRI.TECH. | BD1643 | BD1643 |
| KRAFT AUTOMOTIVE | 6045473 | 6045473 |
| PATRON | PBD1632 | PBD1632 |
| JP GROUP | 5163100200 | 5163100200 |
| QUINTON HAZELL | BDC6056 | BDC6056 |
| KAWE | 61478 10 | 6147810 |
| NK | 3139102 | 3139102 |
| COMLINE | ADC2730V | ADC2730V |
| COMLINE | AND6944 | AND6944 |
| KLAXCAR FRANCE | 25861z | 25861z |
| SASIC | 6104031 | 6104031 |
| MEYLE | 16-15 521 0028 | 16155210028 |
| CIFAM | 800-1288C | 8001288C |
| AP | 25329 | 25329 |
| FENOX | TB219355 | TB219355 |
| DELPHI | BG4455C | BG4455C |
| ICER | 78BD4009-2 | 78BD40092 |
| REMSA | 61478.10 | 6147810 |
| ATE | 24.0123-0119.1 | 24012301191 |
| TRUSTING S.P.A | DF1643 | DF1643 |
| FERODO | DDF2078C-1 | DDF2078C1 |
| Japanparts | DI-032 | DI032 |
| MASTER-SPORT | 24012502211-PCS-MS | 24012502211PCSMS |
| MASTER-SPORT | 24012502211-SET-MS | 24012502211SETMS |
| SBS | 18153139102 | 18153139102 |
| METELLI | 23-1288C | 231288C |
| SWAG | 70 94 0075 | 70940075 |
| ZIMMERMANN | 470.2439.20 | 470243920 |
| ZIMMERMANN | 470.2439.52 | 470243952 |
| TRISCAN | 8120 25180C | 812025180C |
| BOSCH | 0 986 479 779 | 0986479779 |
| MINTEX | MDC2657 | MDC2657 |
| WOKING | D61478.10 | D6147810 |
| PAGID | 55726 | 55726 |
| VAICO | V21-80002 | V2180002 |
| BORG & BECK | BBD5335 | BBD5335 |
| DENCKERMANN | B130698 | B130698 |
| AMD | AMD.BD257 | AMDBD257 |
| OPEN PARTS | BDA2656.20 | BDA265620 |
| VILLAR | 628.2732 | 6282732 |
| HELLA PAGID | 8DD 355 122-431 | 8DD355122431 |
| NiBK | RN43008 | RN43008 |
| AUTOMOTOR FRANCE | ADC6300 | ADC6300 |
| AUTOMOTOR FRANCE | PDC6300 | PDC6300 |
| STELLOX | 6020-9972-SX | 60209972SX |
| A.B.S. | 09.B463.10 | 09B46310 |
| A.B.S. | 18161 | 18161 |
| APEC braking | DSK3045 | DSK3045 |
| METZGER | 6110683 | 6110683 |
| ASHIKA | 60-00-032 | 6000032 |
| R BRAKE | 78RBD24009 | 78RBD24009 |
| BRAXIS | AE0261 | AE0261 |
| ROAD HOUSE | 61478.10 | 6147810 |
| ASAM | 30625 | 30625 |
| MAXTECH | 875376.0000 | 8753760000 |
| MAXTECH | 875376.0060 | 8753760060 |
| MAXTECH | 875376.0080 | 8753760080 |
| MAXTECH | 875376.6060 | 8753766060 |
| MAXTECH | 875376.6880 | 8753766880 |
| MAXTECH | 875376.6980 | 8753766980 |
| CAR | 142.1744 | 1421744 |
| BREMSI | DBC078V | DBC078V |
| Dr!ve+ | DP1010.11.1579 | DP1010111579 |
| ST-TEMPLIN | 53.110.32820 | 5311032820 |
| ST-TEMPLIN | 53.111.32820 | 5311132820 |
| ACEMARK | 242831 | 242831 |
| ZEKKERT | BS-5594 | BS5594 |
| MDR | MFD-2032 | MFD2032 |
| MOTAQUIP | LVBD1815 | LVBD1815 |
| BRECO | BS 8939 | BS8939 |
| PROTECHNIC | PRD2867 | PRD2867 |
| ROTINGER | RT 21333 | RT21333 |
| ROTINGER | RT 21333 T5 | RT21333T5 |
| ROTINGER | RT 21333-GL | RT21333GL |
| ROTINGER | RT 21333-GL T5 | RT21333GLT5 |
| E.T.F. | 19-2557 | 192557 |
| FREMAX | BD-4009 | BD4009 |
| MAXGEAR | 19-2236 | 192236 |
| MAXGEAR | 19-2236SPORT | 192236SPORT |
| FIT | FR0742V | FR0742V |
| TORQUE | JL119 | JL119 |
| ABE | C3R044ABE | C3R044ABE |
| MGA | D1978 | D1978 |
| JAPKO | 60032 | 60032 |
| Property | Value |
|---|---|
| Страна регистрации бренда | Германия |
| Диаметр, мм | 269 |
| Толщина тормозного диска, мм | 22.4 |
| Вес | 10,5 |
| Минимальная толщина, мм | 19,8 |
| Диаметр ступицы колеса, мм | 114,3 |
| Количество в упаковке | 2 |
| Тип тормозного диска | Вентилируемый |
| Количество отверстий | 5 |
| Сторона установки | Передний мост |
