HBC52025 - Hort - Torsion Group

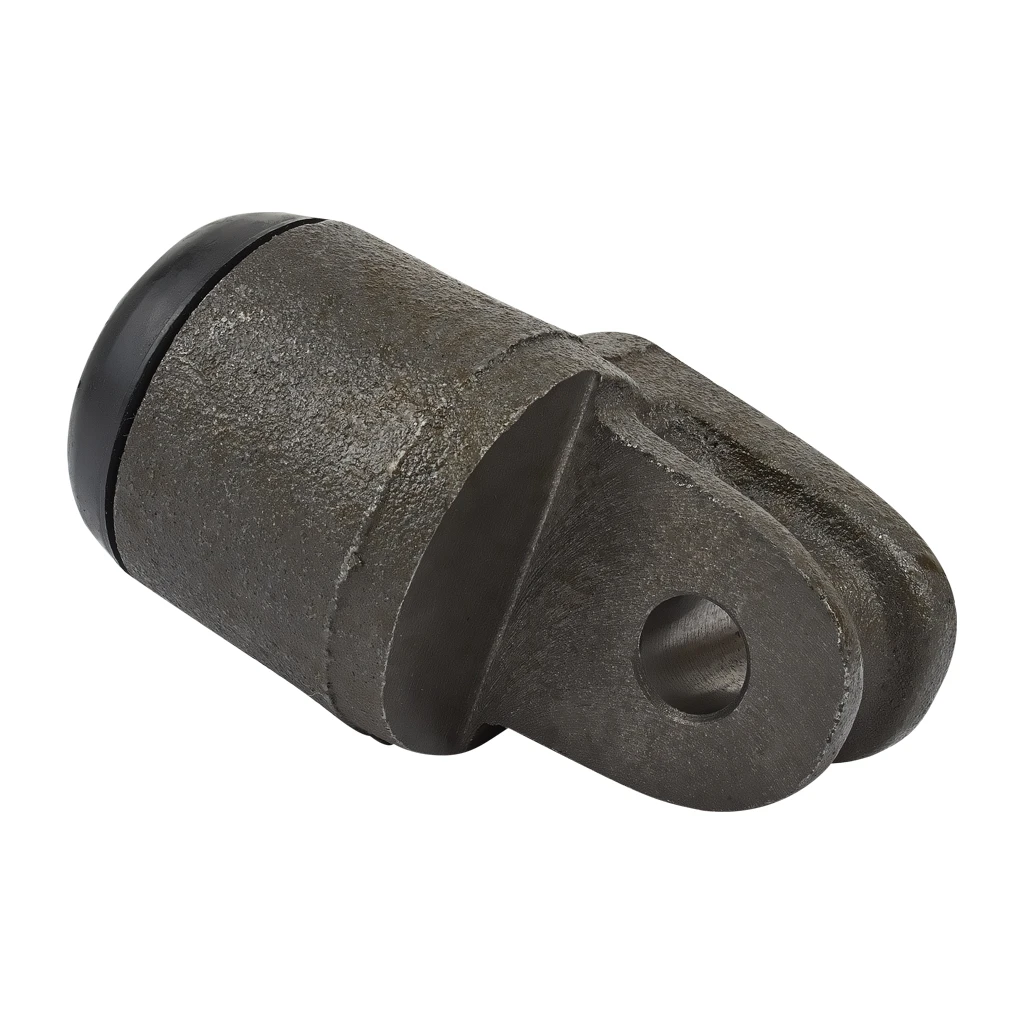

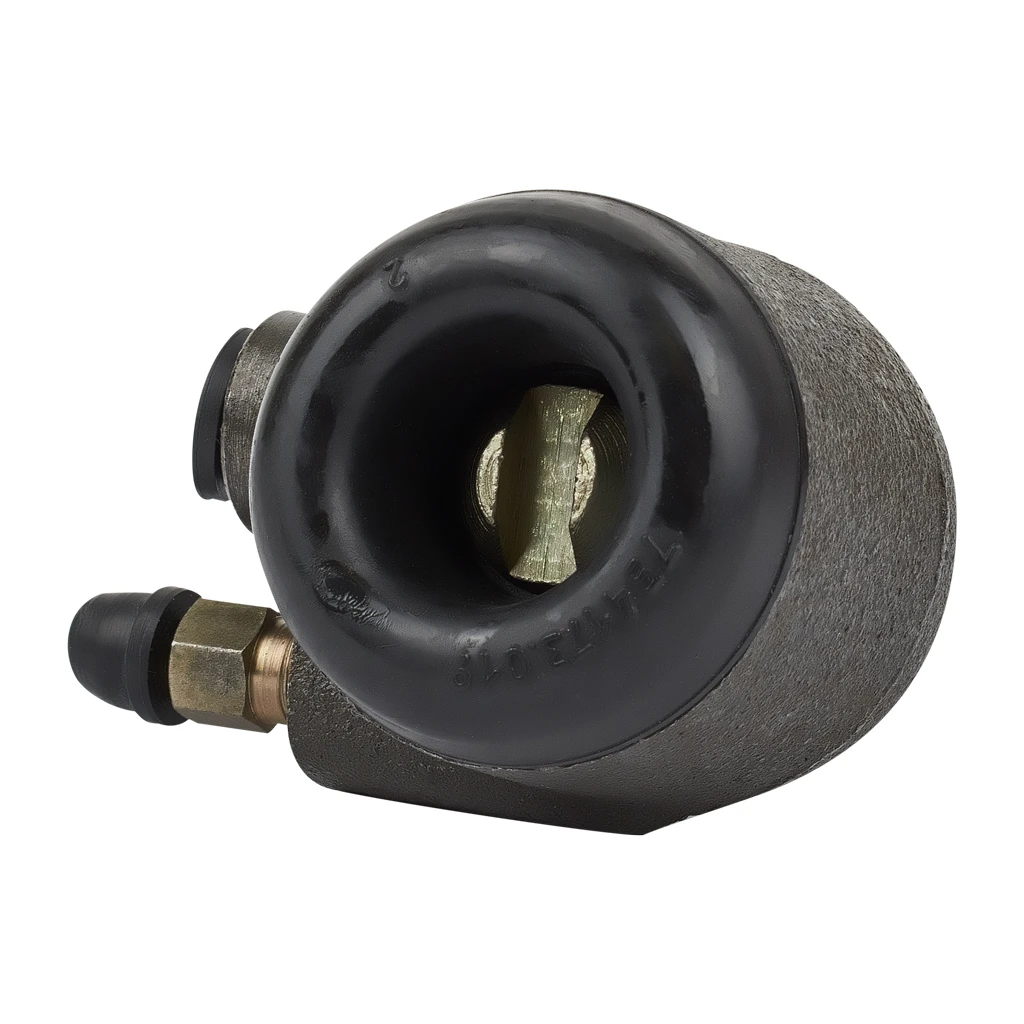

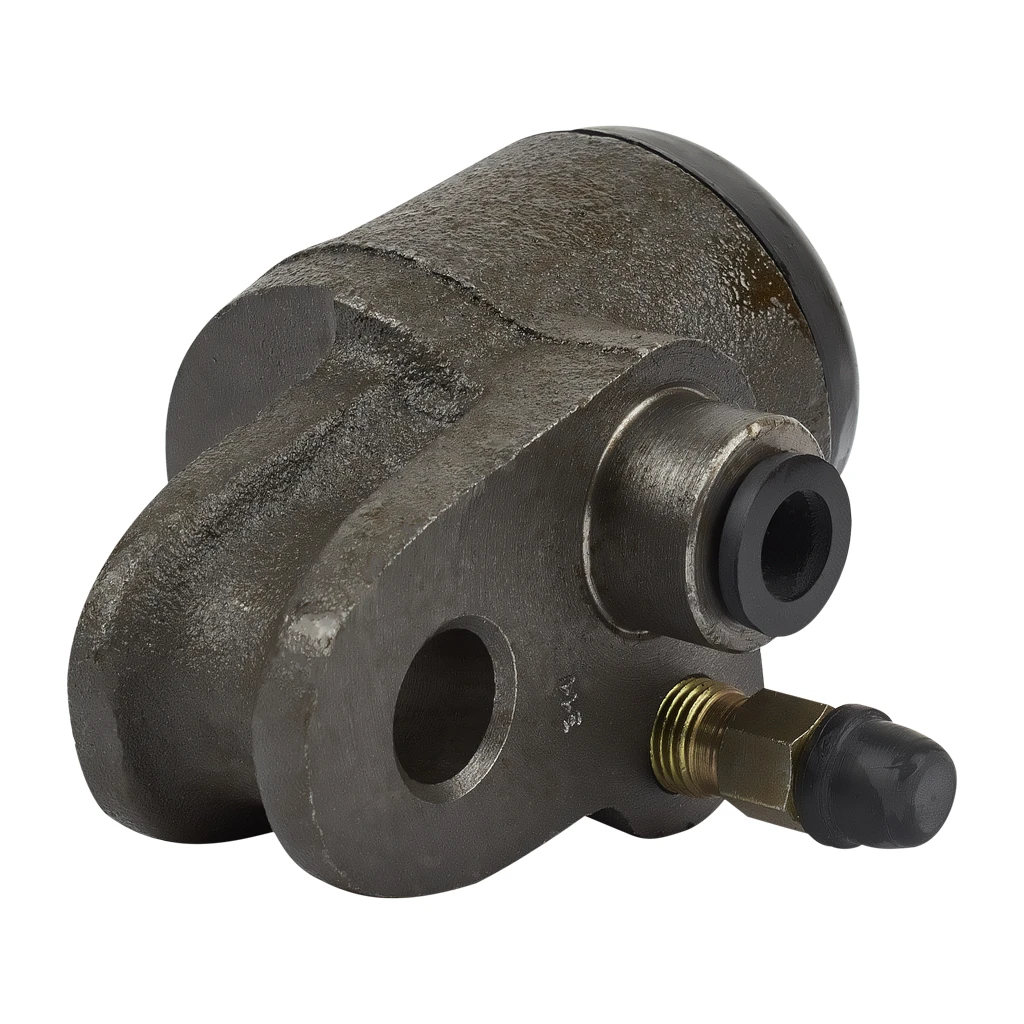

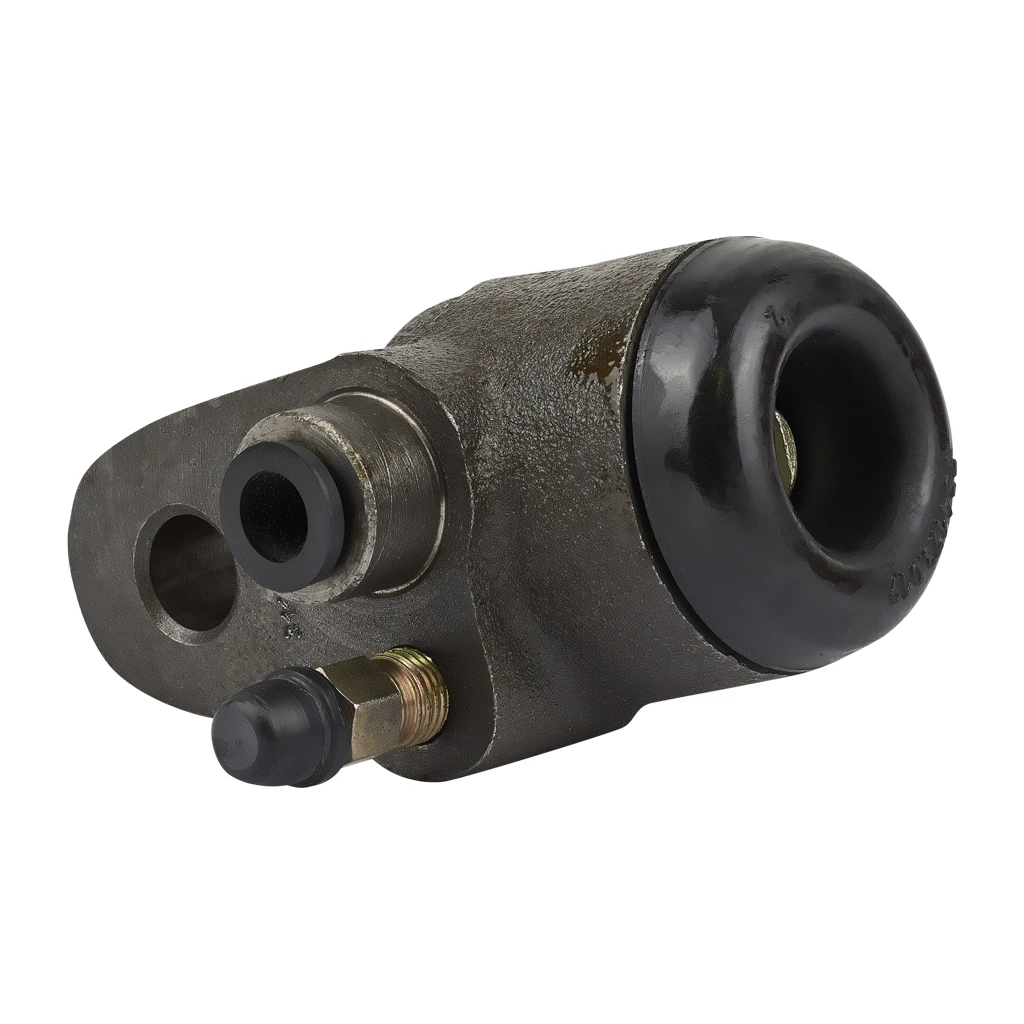

Cylinder brake front right HBC52025 (HORT)

Key Features:

Code: 000017303
Brand: Hort
Article: HBC52025
Specification: 2410 3501040-(10)
Weight, kg: 0.610

Code:	000017303
Brand:	Hort
Article:	HBC52025
Specification:	2410 3501040-(10)

Description
Cross Code
Applicability
Characteristics
Analogs
People also buy

Clutch cylinders and brakes ТМ «HORT» are intended for transfer of effort from a pedal to executive mechanisms of brake system and to details of a drive of coupling of the car. In cylinders, a special liquid is used with the creation of pressure in the cylinder piston cavity, the stem extends and the force is transferred to the associated parts, and when the pressure drops, the stem returns to its original position due to the force of the return spring.

Distinctive features:
Cases of clutch cylinders and brakes TM "HORT" are made by casting from cast iron and aluminum, with internal surfaces honing, which allows to retain brake fluid on the walls and improve the lubrication of friction parts.
Rubber technical parts (cuffs, anthers) are made of high-quality materials.
The cuffs are adjusted according to the value of the internal pressure, change the degree of pressing against the surface and create an absolute tightness.
The working life of the cylinders is calculated for 170-250 thousand cycles, which roughly corresponds to 4 years of intensive operation.

The clutch cylinders and brakes of TM "HORT" are ISO / TS 16949 certified and certified in Ukraine.

Brand	Cross Code	Short Code
GAZ	24103501040	24103501040
GAZ	2410-3501040	24103501040
GAZ	24103501040000	24103501040000
GAZ	24-1035010-40000	24103501040000
TSN	2.5.47	2547
TRIALLI	CF324	CF324
HORT	HBC52025	HBC52025
FENOX	K3202	K3202
FENOX	K3202C3	K3202C3
FENOX	K3202C4	K3202C4

Property	Value
Страна регистрации бренда	Германия

Name	Vendor	Price
Cylinder brake front right K3202C3 (Fenox) K3202C3	Fenox
